Combination Therapy

Combination Therapy Product

Innovative ultrasound and TENS combination therapy for seamless integration of two powerful modalities for unparalleled relief and enhanced rehabilitation.

Starting from INR 7500/- only

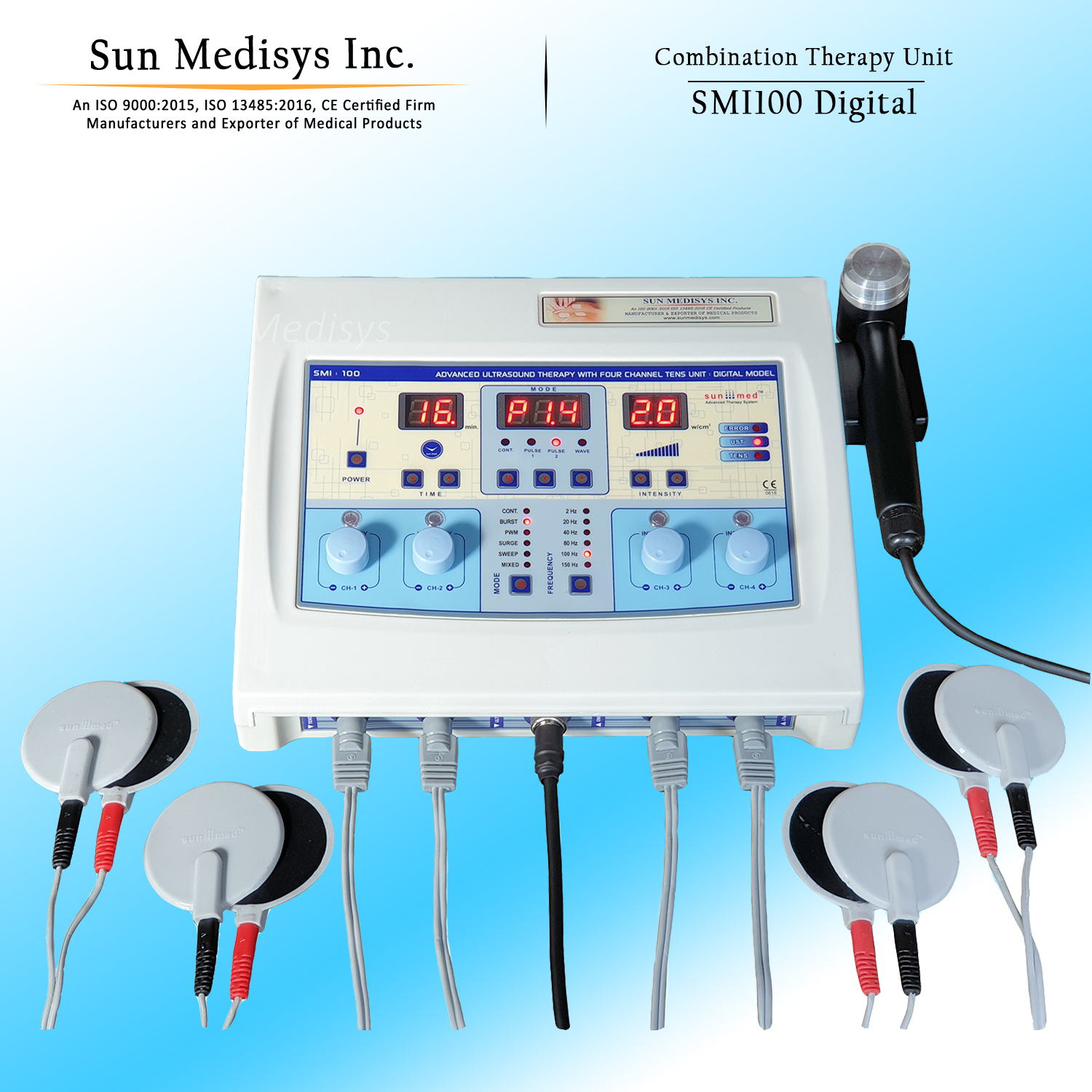

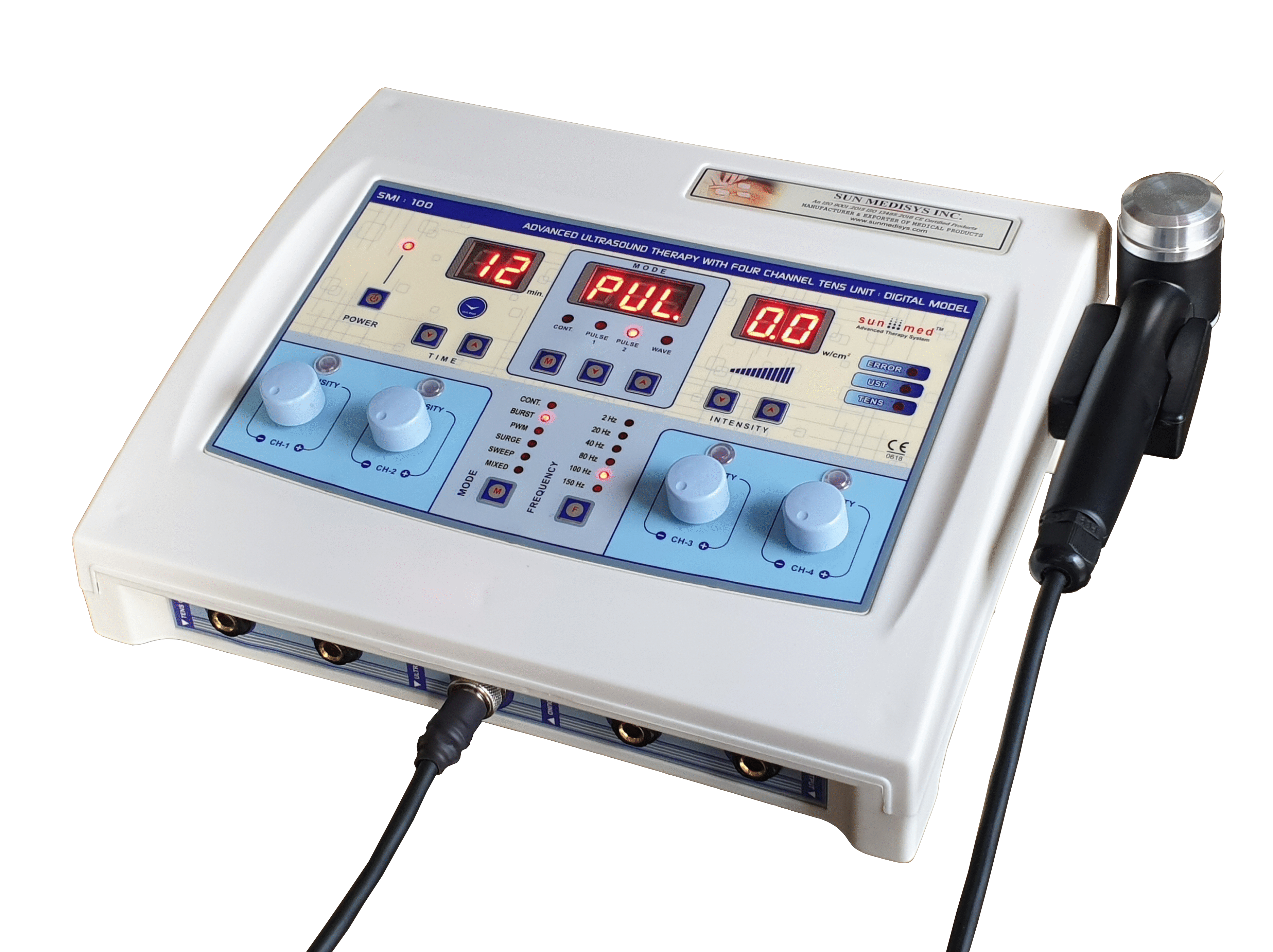

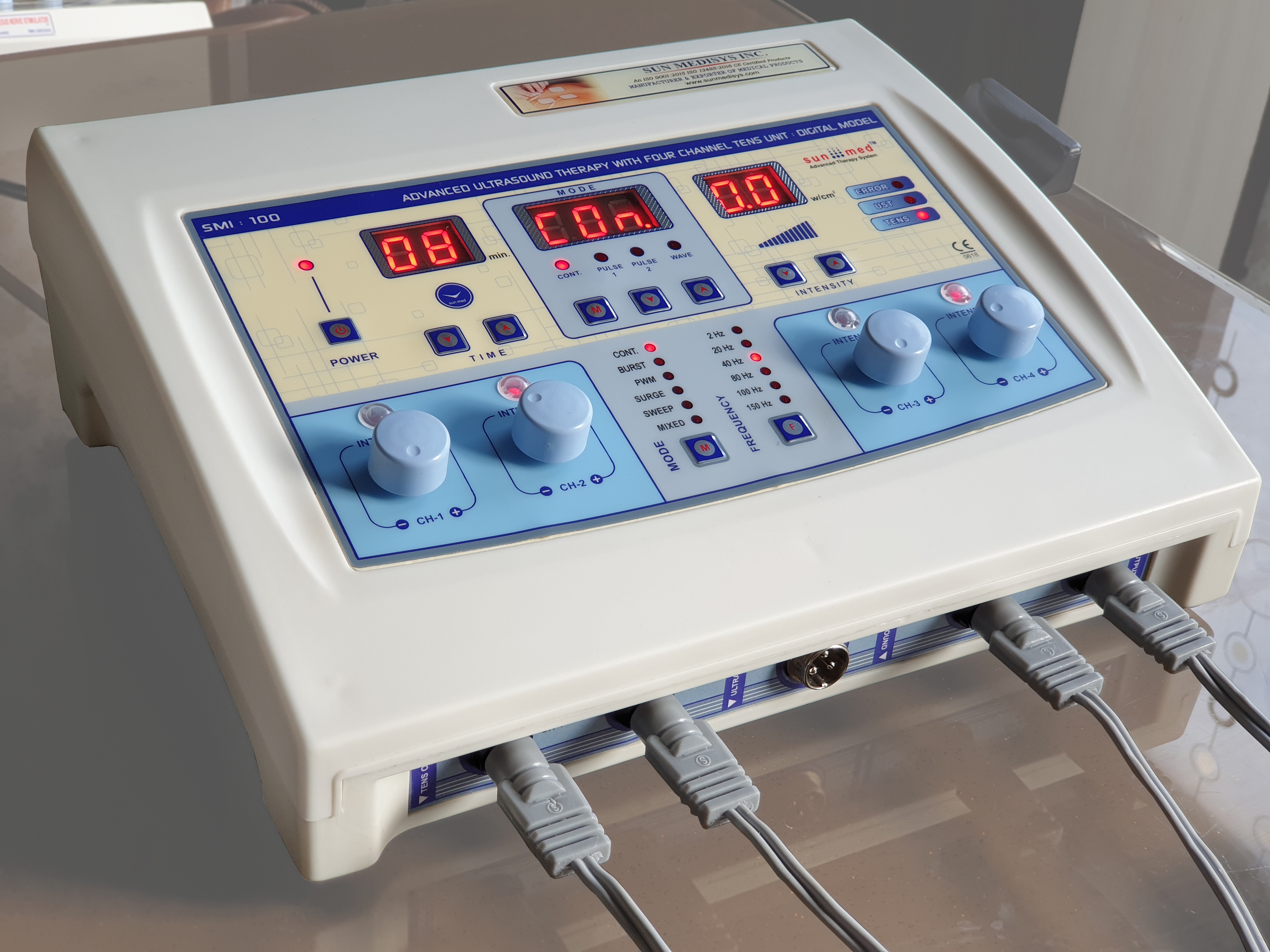

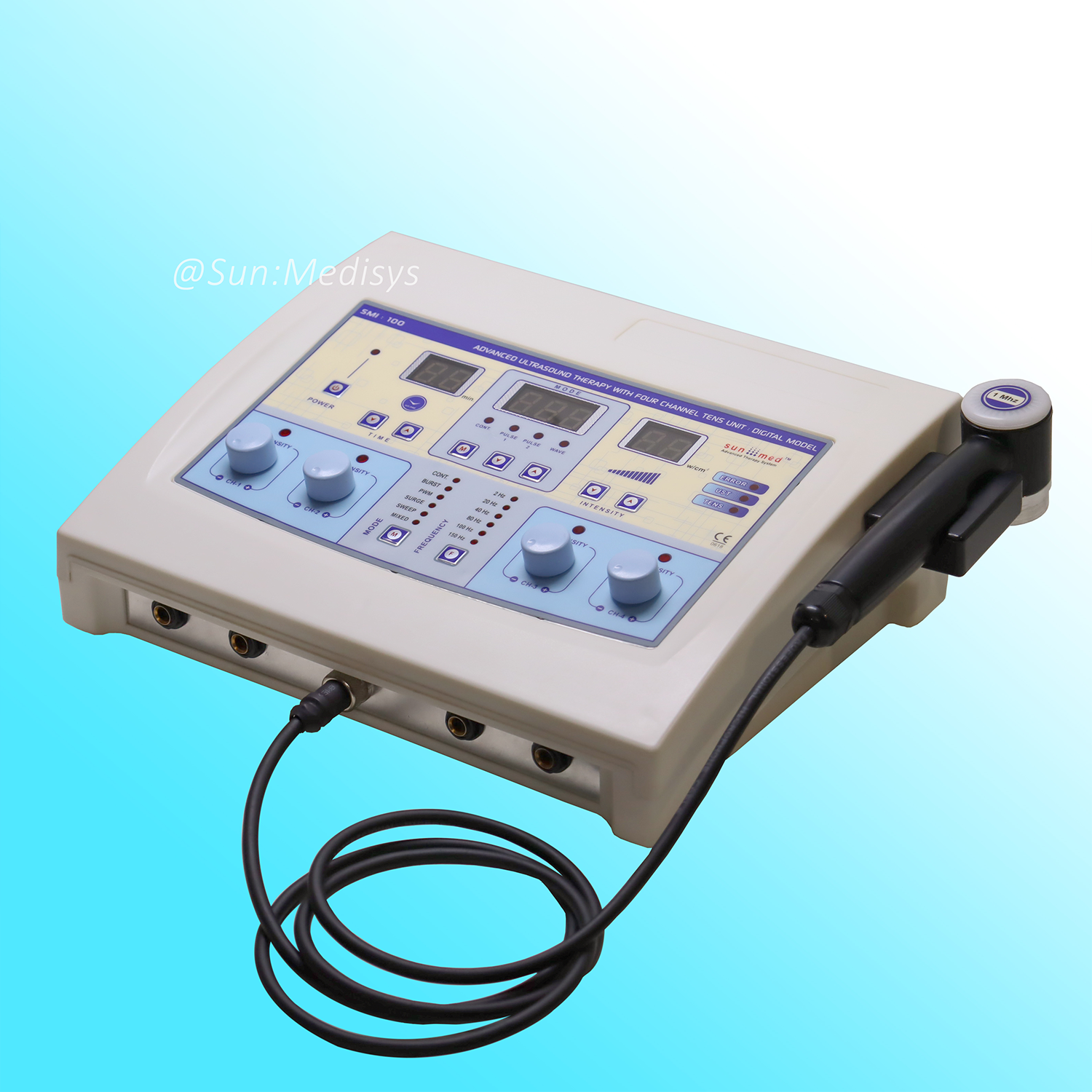

Advanced 1MHz Ultrasound Therapy with Four Channel TENS Unit: SMI100

Technical Specification

  • 4 independent TENS output channels + 1 MHz ultrasound output channel
  • Never before seen delivery of TENS and Ultrasound at the same time
  • 0-80 mA pulse Amplitude on each channel.
  • 1Mhz of Ultrasound generated by a piezo-electric crystal
  • 4 Different Ultrasound Modes: Continuous, Pulsed A, Pulsed B, Wave.
  • SMPS Supply – Works on a wide range of voltage from 90 to 270 volts.

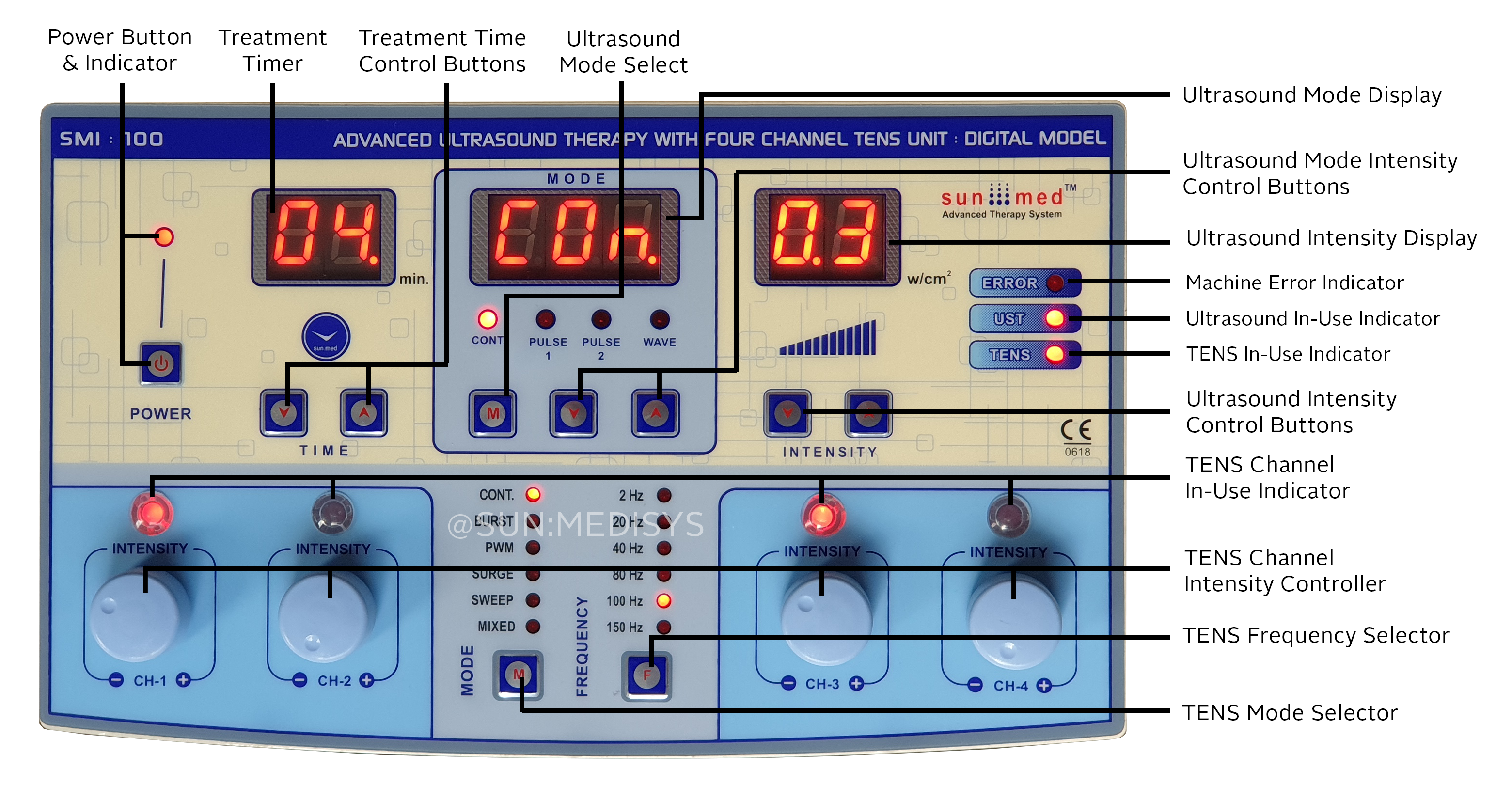

  • LED display for pulse mode & pulse frequency
  • 60 Minutes digital timer with start/pause key.
  • Unit Error Indicator
  • In use indicator
  • Audio buzzer at end of the treatment for the safety output control

    • Standard Accessories

  • Rubber Electrodes (Round) - 08 Nos.
  • Electrode’s Lead - 04 Nos.
  • Velcro Fixation straps - 02 Sets
  • Mains Lead - 01 No.
  • User’s Manual - 01 No.
  • Extra fuse (Available within The AC Socket) - 01 No.

    • Featured Blog

    Four independent output channels with indicator 0-80 mA pulse Amplitude on each channel 60 Minutes timer which can be varied within the control panel 60 Minutes timer which can be varied within the interface 60 Minutes timer which can be varied within the control panel 60 Minutes timer which can be varied within the control panel Audio buzzer at end of treatment & for safety output control Light weight for Portability Made for personal use

    Four independent output channels with indicator 0-80 mA pulse Amplitude on each channel SMPS Supply - Works between 90 to 270 volts. Frequency selection from 0-250 Hz & Pulse Width selection from 100-250 µsec. 5 Pulse modes: Continuous, Sweep, Pulsed, Burst, PWM 128X64 Graphic LCD for ease of use Two independent output channels with indicator 0-80 mA pulse Amplitude on each channel 12 different modes/programs of TENS current to tackle many conditions 60 Minutes timer which can be varied within the interface LCD display for easy-to-understand operation Audio buzzer at end of treatment & for safety output control Light weight for Portability Especially made for personal use

    Four independent output channels with indicator 0-80 mA pulse Amplitude on each channel 60 Minutes timer which can be varied within the control panel 60 Minutes timer which can be varied within the interface 60 Minutes timer which can be varied within the control panel 60 Minutes timer which can be varied within the control panel Audio buzzer at end of treatment & for safety output control Light weight for Portability Made for personal use
